Design Specification based on :
- Room area 20~30m2 with 3m height and 25x ACH
- Bigger room can use double system or more
Operating Condition :
- Pressure Room Design : Negative (-5 to -15Pa)
- Target Room Condition :
- Temperature : 24 to 26oC
- Humidity : 40 to 60% RH
- Ambient Design @35oC/65%RH
AHU
Casing Flatform
- Frame work aluminum profiles
- Thermal Break System -Joint nylon corner
Panels
- 25mm double wall high density 45 kg/m3
- Injecting polyurethane
- Thickness 25 mm or 50 mm
Blower
- Double inlet centrifugal fans
- Accordance to AMCA standard
Motor
- Installed in 3 phase with 380V-50Hz
- Class F insulation and IP 55 Protection
Magnehelic
- Air Pressure Drop Monitoring
Evaporator Coil
- Alumunium finned
- Inner Grooved copper tubes and galvanized casing
Air Filter
- G4 (Prefilter) washable type (Eff. 30-35%)
- F8 (Medium Filter) V Bank (Eff. 95-97%)
Exhaust Fan Unit
Casing Flatform
- Framework alumunium profiles
- Thermal break system
- Join nylon corner
Panels
- 25 mm double wall high density 45kg/m3
- Injecting polyurethane
- Thickness 25 mm or 50 mm
Blower
- Double inlet centrifugal fans
- Accordance to AMCA standard
Motor
- Installed in 3 phase with 380 V-50Hz
- Class F insulation and IP 55 protection
Magnehelic
- Air Pressure Drop Monitoring
Air Filter
- G4 (Prefilter) washable type (Eff. 30-35%)
- H13 (Hepa Filter) (Eff. 99.99%)
Control
Fan speed control
All the motor using Variable Speed Drive (VSD), easy balancing between Air Handling Unit and Exhaust Fan, make room pressure constant
|
MODEL AHU SUPPLY |
DFE 01D.PMF.VSD.ISO |
|
|
Cooling Capacity |
kW |
32.2 |
|
Heating Capacity |
kW |
6.8 |
|
Backup heater |
kW |
5 |
|
Refrigerant |
|
R407C |
|
Airflow |
m3/h |
1,800 |
|
Eksternal Static Pressure |
Pa |
350 |
|
Power Supply |
V/Ph/Hz |
380/3/50 |
|
Power Consumption Total |
kW |
6.1 |
|
Rated Ampere Total |
A |
10.55 |
|
Approx. Weight |
kg |
300 |
|
Filter |
Pre, Medium Filter |
|
|
Pre Filter |
|
G4 |
|
Qty |
pcs |
1 |
|
Dimension |
inchi |
24x24x2 |
|
Medium Filter |
|
F8 |
|
Qty |
pcs |
1 |
|
Dimension |
inchi |
24x24x12 |
|

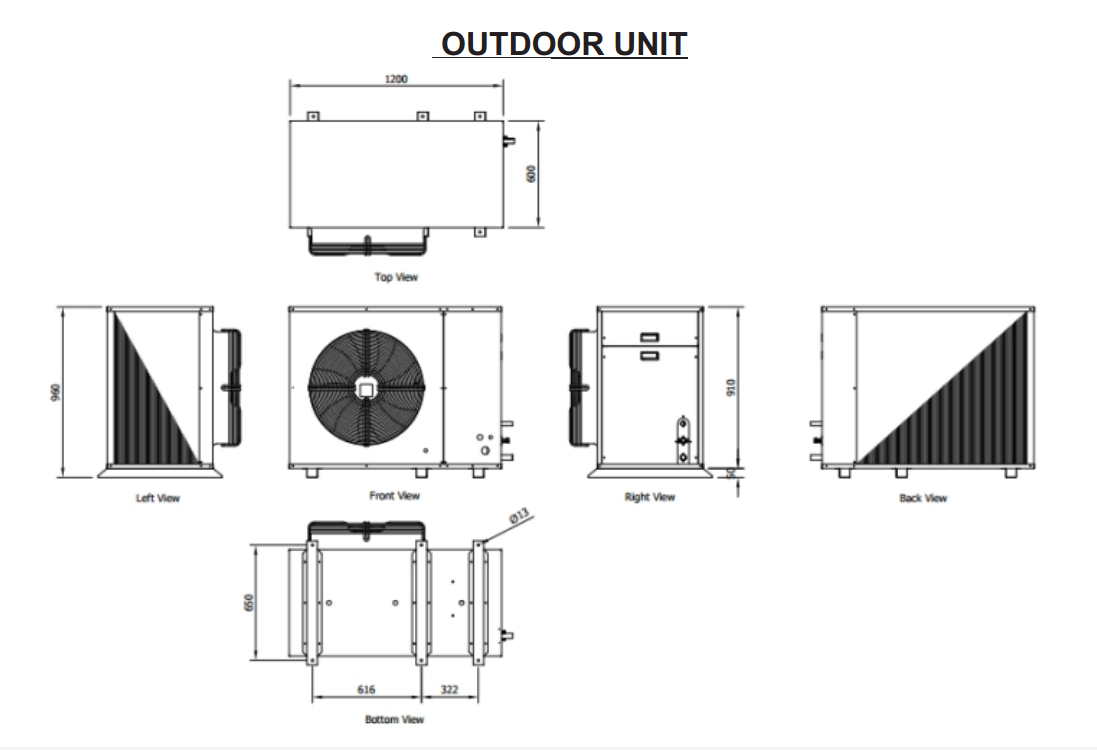

MODEL OU |
DCU 102 |
|
|
Compressor Type |
Hermetic Scroll |
|
|
Protection Device |
Phase Protector, Thermal Overload Relay, High & Low Pressure Control, Internal Temperature Protection |
|
|
Compressor Quantity |
unit |
1 |
|
Power Supply |
V/Ph/Hz |
380/3/50 |
|
Power Consumption Total |
kW |
8.82 |
|
Rated Ampere Total |
A |
16.23 |
|
Approx. Weight |
kg |
190 |
|
MODEL EXHAUST FAN UNIT |
EF 01.PHF.VSD.ISO |
|
|
Airflow |
m3/h |
2,520 |
|
Eksternal Static Pressure |
Pa |
300 |
|
Power Supply |
V/Ph/Hz |
380/3/50 |
|
Power Consumption Total |
kW |
1.1 |
|
Rated Ampere Total |
A |
2.55 |
|
Approx. Weight |
kg |
250 |
|
Filter |
Pre, HEPA Filter |
|
|
Pre Filter |
|
G4 |
|
Qty |
pcs |
1 |
|
Dimension |
inchi |
24x24x2 |
|
HEPA Filter |
|
H-13 |
|
Qty |
pcs |
1 |
|
Dimension |
inch i |
24x24x12 |
